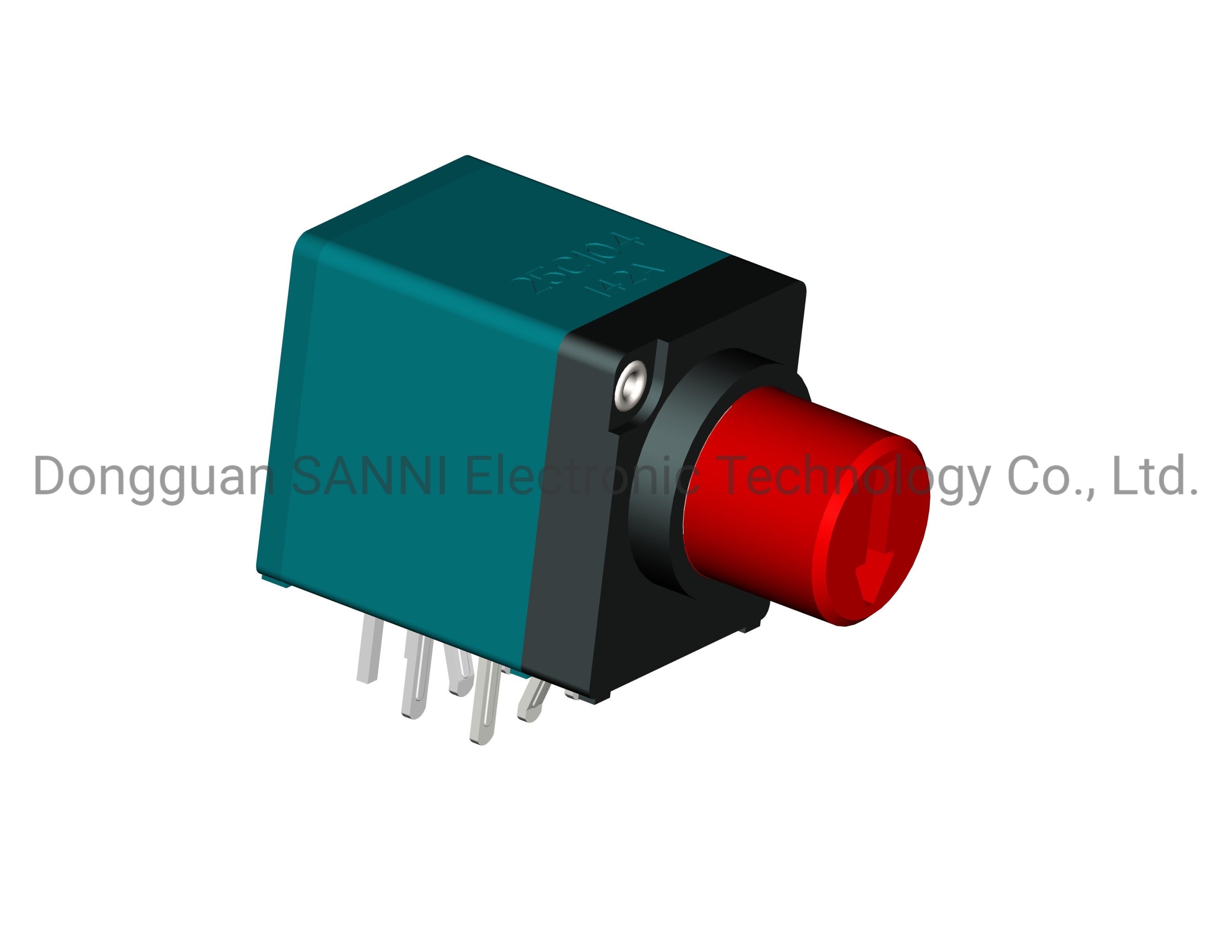

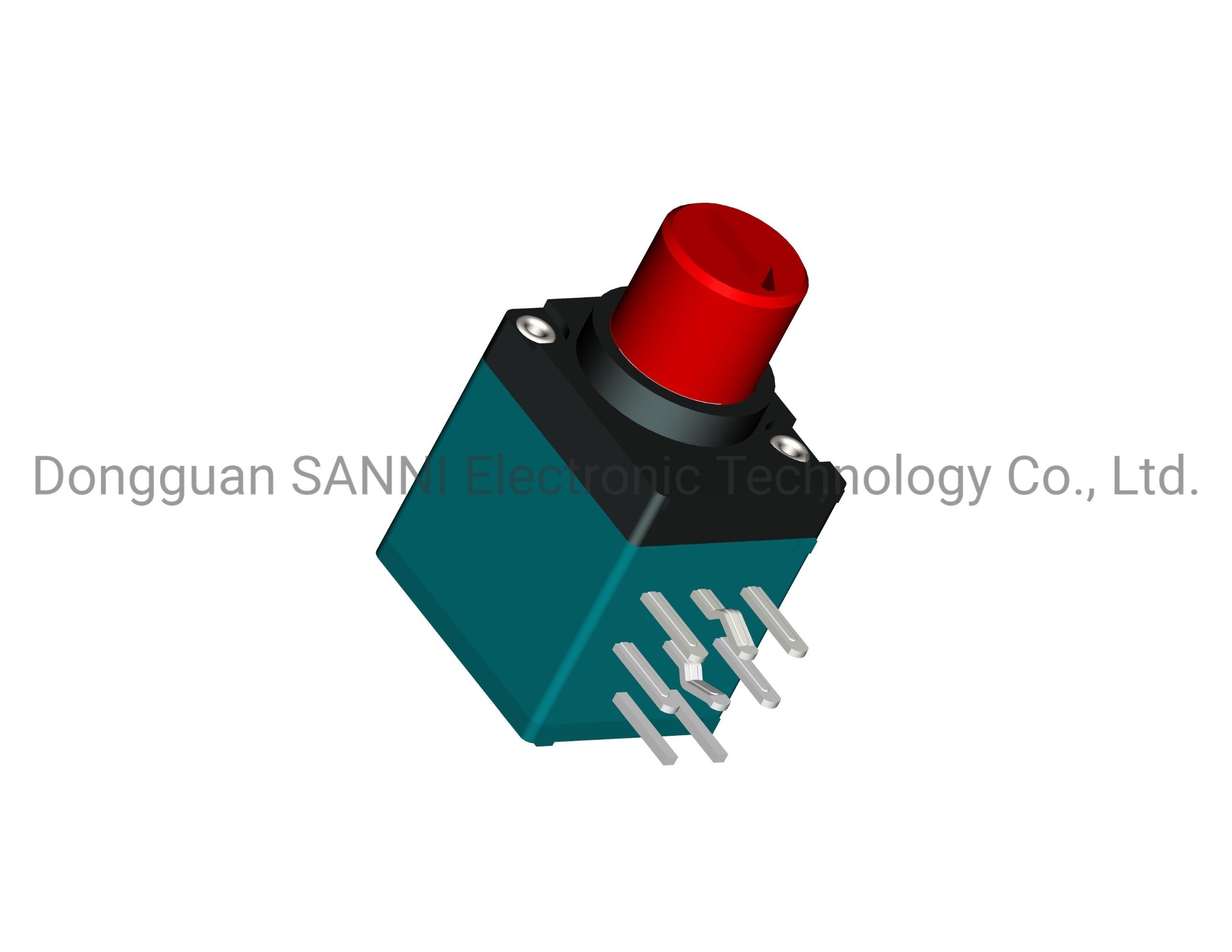

RV97P0G0LED 9mm Potensiometer Plastik Shaft Disegel dengan Fungsi Pencahayaan LED

RV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting Function
RV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting Function
RV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting Function RV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting Function
Informasi Dasar
Tempat asal: CINA
Nama merek: SANNI
Kuantitas min Order: 2000pcs
Kemasan rincian: 2000 BUAH/KOTAK
Waktu pengiriman: 25 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 30000pcs/bulan
Hubungi sekarang
Model nomor.: RV97P0G0LED Kuantitas: Rangkap
Membentuk: Kotak Skala perubahan resistensi: Log atau Linear
Aplikasi: Audio Merek: SANNI
Paket Transportasi: Kotak Karton Spesifikasi: 9mm
Merek dagang: SANNI Asal: CINA
Menyediakan kemampuan: 10000pcs per bulan Perlawanan: Resistor Variabel
Fungsi untuk Ketahanan: Beban Resistor Instalasi: Resistor SMD
Bahan: Resistor Film Karbon Kemasan: Lubang Pikir
Jenis: Potensiometer Putar Sampel: <i>US$ 5/Piece 1 Piece(Min.Order) |</i> <b>US$5/Potongan 1 Buah(Pesanan Minimum) |</b> <i>Request Sa
Kustomisasi: <i>Available |</i> <b>Tersedia |</b> <i>Customized Request</i> <b>Permintaan Disesuaikan</b>
Menyoroti:

RV97P0G0LED Potentiometer

,

Potensiometer Fungsi Pencahayaan LED

,

Potensiometer poros plastik 9 mm

Deskripsi Produk

Informasi Perusahaan.

Informasi dasar.

Model NO.
RV97P0G0LED
Jumlah
Duplex
Bentuk
Persegi
Skala perubahan resistensi
Logaritma atau linier
Aplikasi
Audio
Merek
Sanni
Paket Pengangkutan
Kotak Karton
Spesifikasi
9mm
Merek dagang
SANNI
Asal usul
Cina
Kapasitas Produksi
10000 PCS Per Bulan

Deskripsi Produk

  • 9mm Potensiometer yang disegel poros terisolasi
  • Poros transparan dengan lampu LED
  • Lebar: 9,5mm
  • Paling cocok untuk kontrol volume amplifier mobil
  • Penggunaan: Digunakan untuk penguat mobil, penguat audio, penguat instrumen musik, efektor gitar, mixer, instrumen dan peralatan
  • Fitur produk
  • Rohs sesuai
  • Jenis segel
  • Volume kecil
  • Diversifikasi struktural
  • Kualitas Tinggi
  • Karakteristik mekanik
  • Total sudut rotasi: 300°±5°
  • Torsi rotasi: 10-150gf.cm CC: klik torsi: 60-400gf.cm
  • Kekuatan stopper rotasi: MIN:3Kgf
  • Kunci Kekuatan dorongan-tarikan: MIN:8Kgf
  • Tombol bergoyang-goyang.0.6*L/20mmP-P
  • Kekuatan terminal: 5N selama 1 menit
  • Karakteristik listrik
  • Resistensi total: 101-305 (100Ω-3MΩ)
  • Toleransi resistensi total:10KΩ-100KΩ:±20% lainnya:±30%
  • Resistensi residu: R≤100KΩ 20Ωmax
  • 50KΩ≤R Nominal total
  • resistensi 0,1% atau kurang
  • Daya nominal: 0,05W
  • Resistensi isolasi: 100KΩ min. 205V DC
  • Proof tegangan: 300V AC selama 1 menit
  • Tegangan operasi maksimum: 50V AC.10V DC
  • Masa kerja: 15000 siklus
RV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting FunctionRV97P0G0LED 9mm Plastic Shaft Sealed Potentiometer with LED Lighting Function
